ITC-152 temperature transmitter
source: Huaxin instrumentsposttime: 2012-03-24

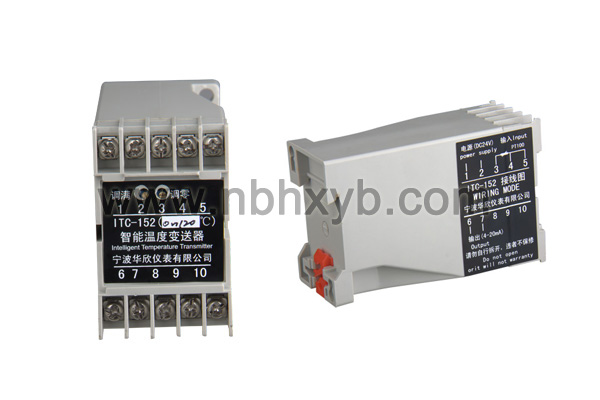

ITC-152 temperature transmitter
1. Product Overview
ITC-152 intelligent temperature transmitter PT100 resistance by receiving signals into 4-20mA current signal, after isolation and linear processing transmission output DC current.
II. Main Specifications
1. Input: PT100 platinum resistance
2. Temperature range: 0-100 ℃ 0-120 ℃ 0-150 ℃
3. Output: DC4-20mA current signal
4. Accuracy: 0.2%
5. Power: DC24V
6. Dimensions: 70 * 45 * 100mm
7. Isolation: input, output, power supply three isolation
This product is easy to uninstall, high precision, high linearity, interference is strong, long-term job stability
NOTE: When ordering please specify the temperature range of users

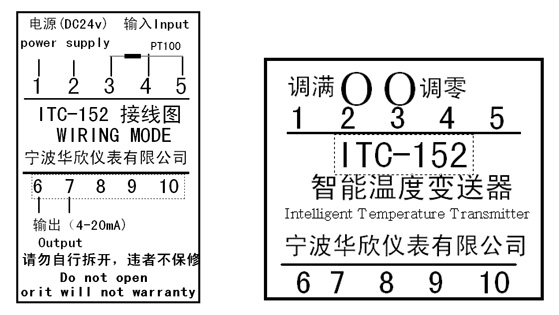

Third, the wiring diagram
Four. Outline
